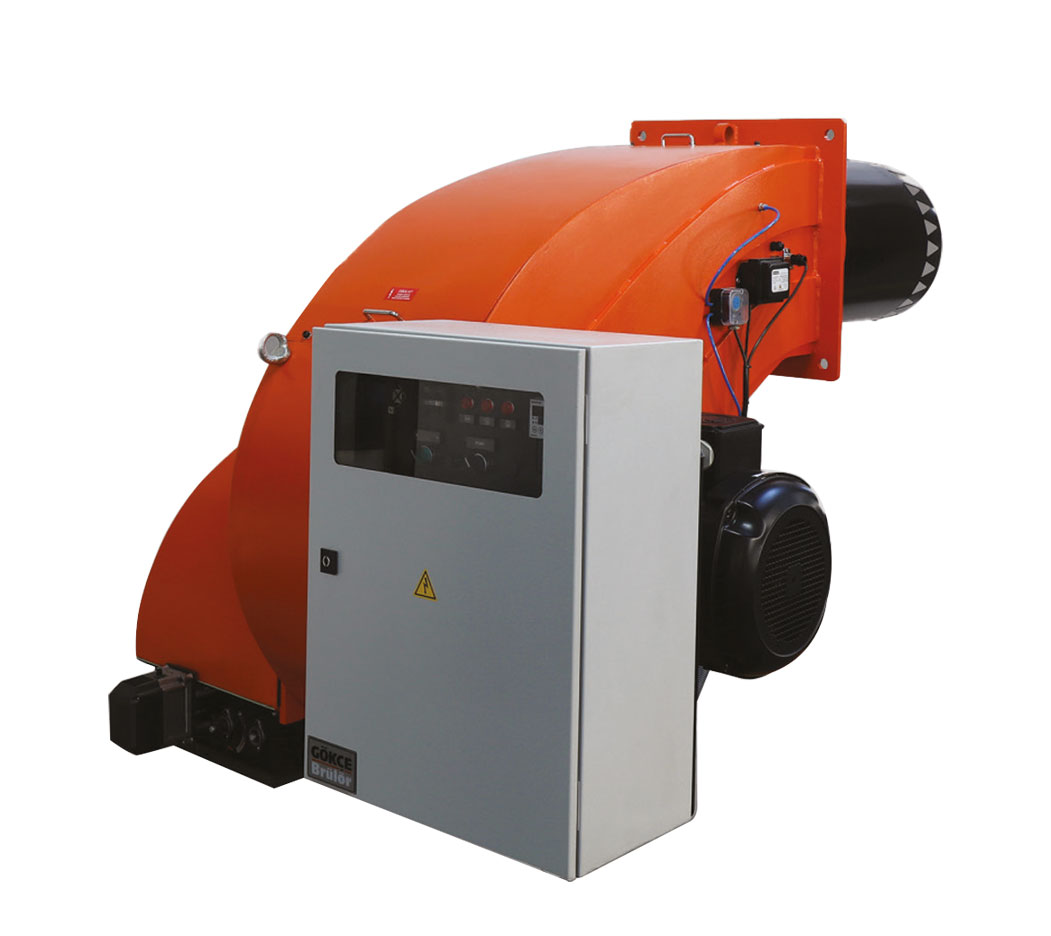

TO 803 A Modulated Burner types another important feature of heavy oil burners is that they can also operate with diesel. During long-term holidays, when it is necessary to return to the diesel fuel or flush the installation with diesel, replacement can be easily made by means of only valve and switch control. This advantage, in addition to providing comfort to the operator, also prevents the pump and heater thermostat settings in the system from deteriorating. TMO type burners have LPG / Natural Gas pilot (pre-ignition) circuit for easy ignition, good and comfortable combustion.
For delivery schedule and order, please contact our sales supervisor via our e-mail address
info@gokceburner.com.
| BURNER TYPE |
TO 803 a |
| RELAY |
LAMTEC |
| FLAME CONTROL |
SIMENS QRB4 |
| SERVOMOTOR |
AIR - LAMTEC 9 NM
FULL - LAMTEC 3 NM |
| TRANSFORMER |
ATS 2 2 X 5000 V |
| HEATER |
- |
| PILOT VALVE |
DUNGS MVD 507 |
| FUEL PUMP |
HP / SUNTEC |
| OIL VALVE |
TORK 3/8" NK-NA DURAVİS 3/8" NK-NA |
| OIL PRESSURE REGULATOR |
İTAL PUMP ITR 2 (1/2") |
| BURNER LANCE |
GÖKÇE |
| ELECTRICAL MOTOR |
18.5 kW 2800 d/d |
