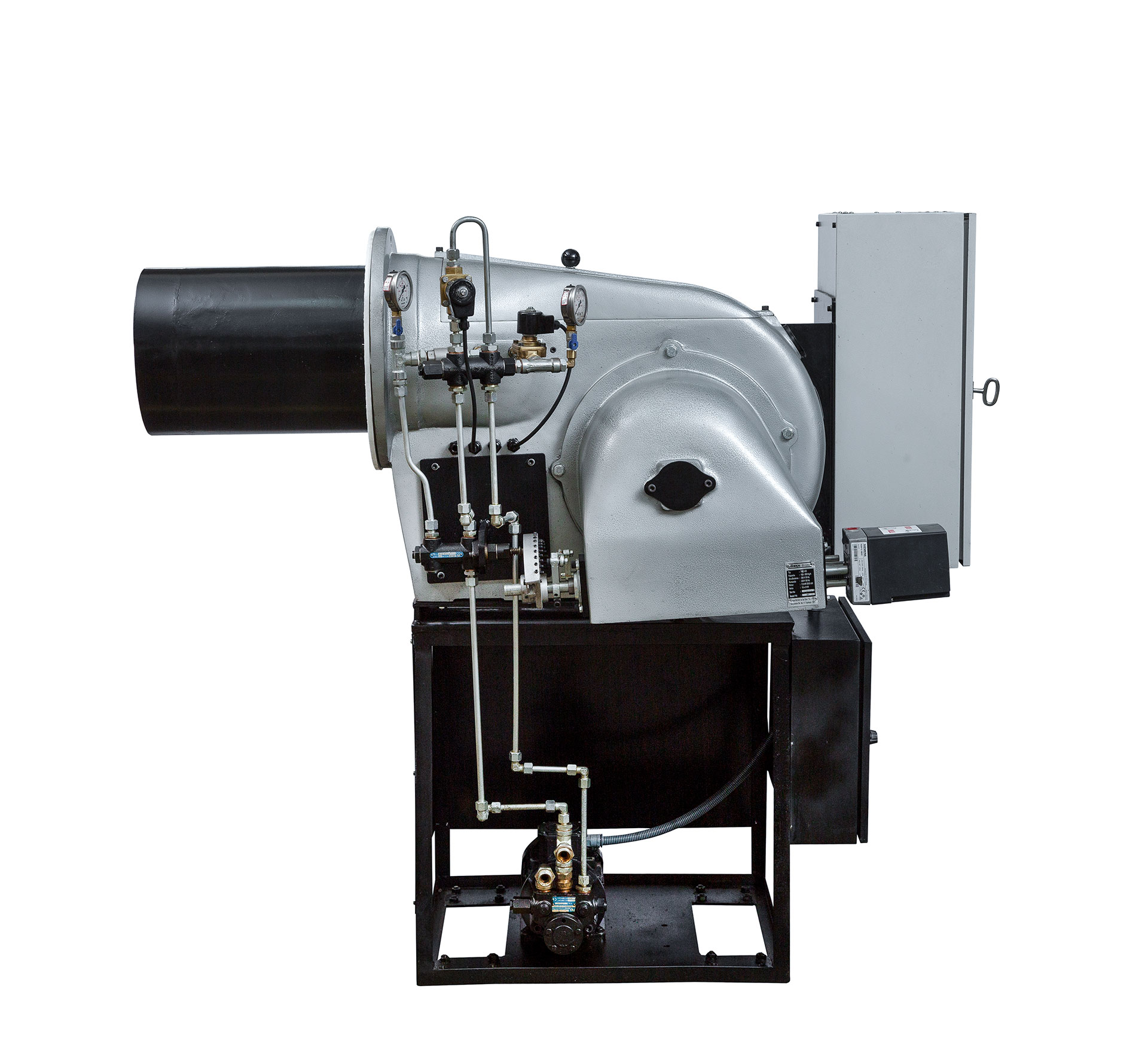

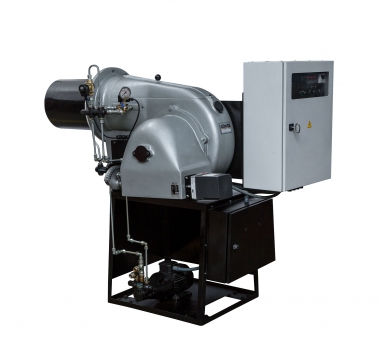

TO 400 Modulated type heavy oil burners are manufactured with a different and advanced design. In construction, the burner is mounted on a system with wheels. A HP heavy oil pump with a special heater is installed in the interior of the system, driven by a heater and a separate electric motor. In this way, problems from heavy oil are prevented.
For delivery schedule and order, please contact our sales supervisor via our e-mail address
info@gokceburner.com.
| BURNER TYPE |
TO 400 |
| ELECTRIC MOTOR |
7.5 kW 2800 d/d |
| CONTROL UNIT |
SIEMENS LAL 1.25 |
| PHOTOCELL |
SIEMENS QRB 4 |
| TRANSFORMER |
SEK. 2x5000V 23mA |
| HEATER |
TMO 400, 24 kW |
| SOLENOID VALVE |
TORK 3/8” NK / DURAVİS 3/8“ NK |
| THERMOSTAT |
TMO 400, EMKO |
| SERVOMOTOR |
SIEMENS SQM 10.16532/SIEMENS SQM 20.261A20 |
| PUMP |
HP NVBGRM |
| OIL PRESSURE REGULATOR |
HP B-G-PRO 2 |
| PILOT VALVE |
DUNGS MVD 505 |
